Ford Transit Mk 8 V363 (2014 - present) RIB V3 Single Seat Swivel - DRIVER (Includes RIB Handbrake Kit)

RIB Ford Transit 2014+ (4th Gen Mk8) Single Seat Swivel - Driver (Right Hand Drive) RIB

Roll over image to zoom in Click on image to zoom

Ford Transit Mk 8 V363 (2014 - present) RIB V3 Single Seat Swivel - DRIVER (Includes RIB Handbrake Kit)

Name: Ford Transit Mk 8 V363 (2014 - present) RIB V3 Single Seat Swivel - DRIVER (Includes RIB Handbrake Kit)
Brand: RIB
SKU: SSW-TC-D-UK-C
Price: 220.0 GBP
Availability: InStock
Rating: 4.7 (246 reviews)

NEW

RIBSKU: SSW-TC-D-UK-C

Price:

£220.00

Quantity:

In stock. Order by 12:00 (Mon-Fri) for same day despatch.

Low Stock: Only 9 Left

In Stock & Ready to Despatch

Fast Delivery on this Item

21,000 Orders Shipped Last Year!

TÜV Approved

Would recommend!

Swivel seat received and fitted within 1 hour of arrival... it was THAT easy! My only grumble was how stiff it was to turn initially so it could be bolted to the base. Other than that I've no complaints. Delivery was super quick too.

Very prompt delivery and great service

I really appreciated getting a call back from Kiravans. They have great customer service. Swivel seats are also working well.

Ford Transit Swivel Seat

Great product. Really easy to fit. Handbrake lower kit was also supplied with the driver swivel, which was great.

1 2 3

Designed for a right hand drive Ford Transit Mk 8 V363 (2014 - present).

Manufactured in France by Scopema, the RIB swivel plate for campervans gets lots of praise on the various forums. In our own experience, we have found these seat swivels to be very robust and rattle-free.

To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily. Once the seat is facing the rear re-engage handbrake. For seats fitted with up/down height adjustment, you will find that you probably need to pump up the seat height to allow the seat to rotate without the grey plastic trim around the base catching on anything.

Notes on fitting:

This swivel fits between the sliders (the rear external corners of the slider rails can be cut to avoid any damage to the plastic door trim while rotating the seat if necessary) and original seat base. RIB advises that a handbrake modification is required (included) and that the battery will need to be relocated.*

It's worth noting that when fitting the handbrake mod bracket, some vans may have the original bolts welded in place. If yours does, they will need to be cut and drilled out. In order to fit, the metal bracket assembly that the handbrake gaiter fits onto on the floor must also be removed. As the handbrake cable goes through a hole in this, the bracket must be cut (or the brake cable detached).

Features

Swivel plate fits between the base and seat slider rails on normal seats
Automatically locks in place facing forward for driving
Pivot point is centrally located in the base
European TÜV safety approval

Compatibility

Compatible with a right hand drive Ford Transit Mk 8 V363 (2014 - present). Will also fit the Ford Transit Custom 1st Gen V362 (2013-2023)
Compatible with heated seats & airbags as wires can pass through the centre
Compatible with the Tourneo Custom
Compatible with a double passenger fixed seat.

Product Specification

Seat height increase: Approx 23mm
Safety: European TÜV safety approval

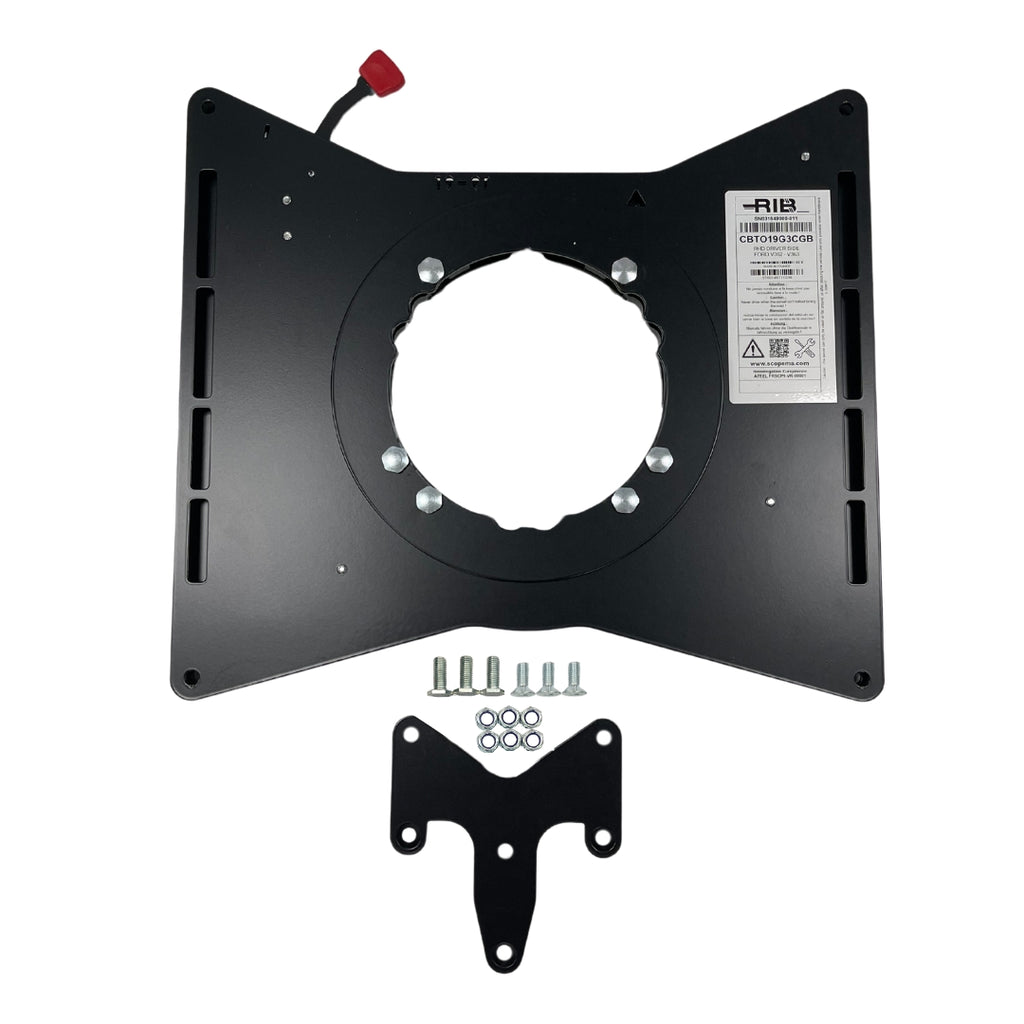

Includes

Swivel plate
Handbrake modification
Bolts to fit standard seat boxes

We've recently learned from a customer that the battery doesn’t need to be moved entirely but can simply be lowered a bit. While we haven’t tested this ourselves, it seems worth mentioning. The battery sits in a plastic box on square plastic blocks, and cutting these blocks off could lower the battery by about an inch, which is enough to fit the swivel over it. If you decide to try this, we'd appreciate hearing how well it works for you.

Installation documentation, videos & FAQ's:
