Fiat Scudo (2007-2016) RIB V2 Single Seat Swivel - DRIVER (Right Hand Drive)

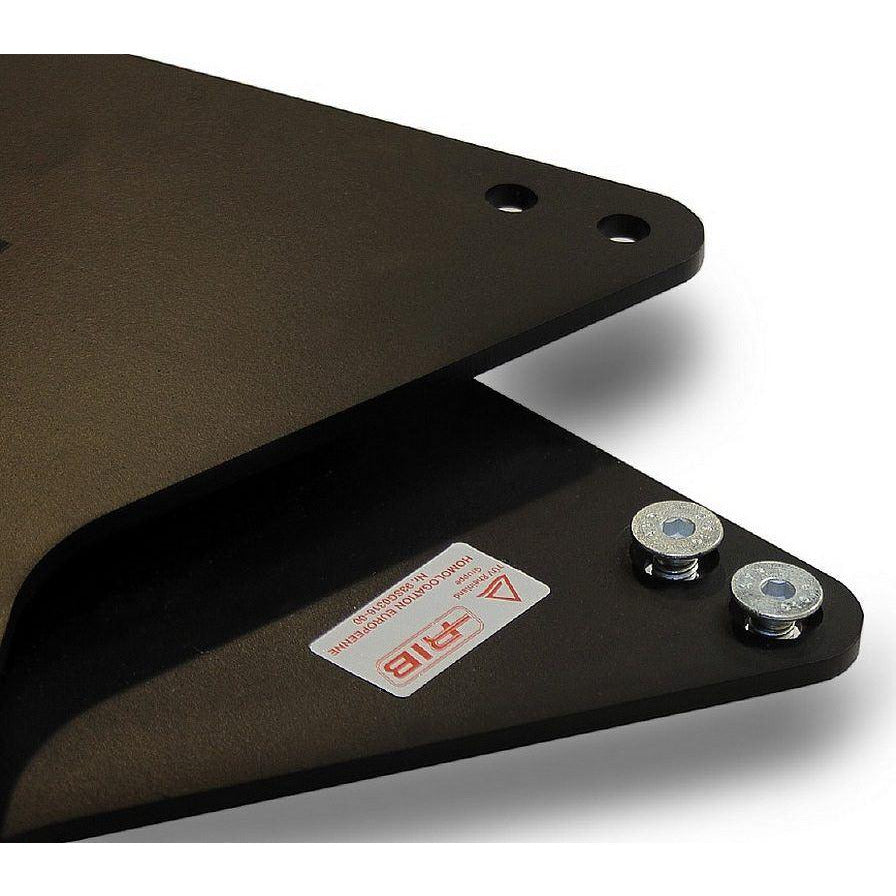

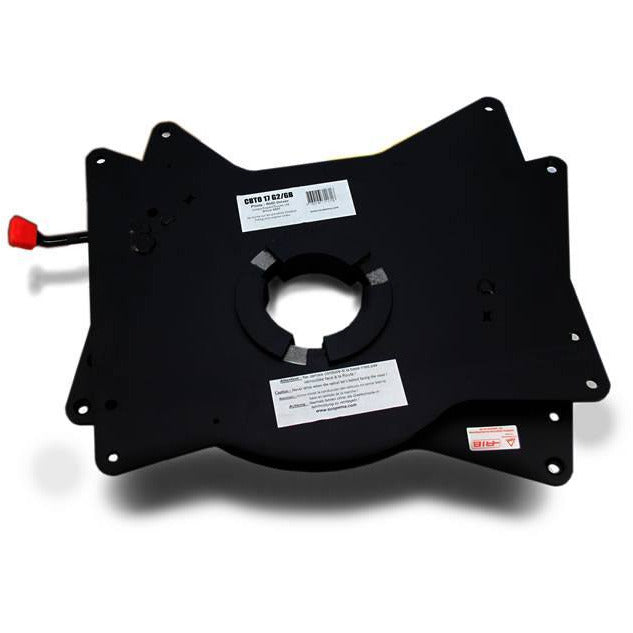

Scudo / Expert (2007 - 2015) Drivers seat swivel (RIB)

Roll over image to zoom in Click on image to zoom

Fiat Scudo (2007-2016) RIB V2 Single Seat Swivel - DRIVER (Right Hand Drive)

Name: Fiat Scudo (2007-2016) RIB V2 Single Seat Swivel - DRIVER (Right Hand Drive)
Brand: RIB
SKU: SWIVDRIV-SCUDO
Price: 99.00 GBP
Availability: InStock

ClearanceSave 57%

RIBSKU: SWIVDRIV-SCUDO

267 reviews

Price:

£99.00 £230.00

Quantity:

Please select an option

Transit swivel seat

Top quality product, Not a five minute job, to get it to fit correctly, but works very well, hard to find instructions which you definitely need

Successful install of drivers swivel seat

Fitted into a 2021 Transit Custom, didn't need to lower the battery, fits without moving / lowering.

Removing the bolts and drilling holes for the handbrake lowering kit was relatively easy - using new angle grinder disks and drill bits.

No removal of seat trim necessary, as with all swivel seats raising the seat before swivel and putting seat back forward makes the movement possible.

We have a fixed passenger double seat (at the moment) and the driver seat can swivel.

Very happy with the item, and the install.

Passenger swivel seat base

Excellent product

RIB Transit Swivel bases

The products are nicely made but area real pain to fit with no instructions included, worst of all the passenger seat does not swivel because of the side cowls on the seat, another 10mm of clearance would have cleared this and now I need to make custom spacers to get around it without cutting the seat trims

Sorry to hear that you're having trouble with the passenger seat not swiveling due to the side trims - i appreciate it is probabaly too late now for you now but we do in fact supply instructions on the products page (section is labelled 'Downloads') as a pdf with full notes about the side trim. There is also a QR code on the product packaging that links to the manufacturers instructions. Hopefully they will at least now give you a reference to check that you have assembled it all correctly. Regards, Rob.

1 2 3

Manufactured in France by Scopema, the RIB swivel plate for campervans gets lots of praise on the various forums. In our own experience, we have found these seat swivels to be very robust and rattle-free.

To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily. Once the seat is facing the rear re-engage handbrake. For seats fitted with up/down height adjustment, you will find that you probably need to pump up the seat height to allow the seat to rotate without the grey plastic trim around the base catching on anything.

Notes on fitting:

Please note on some vans it appears that the plastic handbrake covering rubs on the swivel and may need to be removed.

Features

Swivel plate fits between the base and seat slider rails on normal seats
Automatically locks in place facing forward for driving
Pivot point is centrally located in the base
European TUV safety approval

Compatibility

Compatible with Fiat Scudo 2007-2016 | Peugeot Expert 2007-2016 | Citroen Dispatch/Jumpy 2007-2016 | Toyota ProAce 2007-2016
Compatible with heated seats & airbags
Double passenger seats: If you have a double passenger seat in your van then the driver seat will not rotate unless you fit a swivel plate below the double passenger seat as well. For more detail please download our ‘Compatibility Information’ PDF below.

Product Specification

Seat height increase: Approx 43mm
Safety: European TUV safety approval

Includes

Swivel plate
Bolts to fit standard seat boxes
