RIB Toyota ProAce 2016+ Single Seat Swivel - Driver (Right Hand Drive)

Save 19%

Price:
Sale price£269.50 Regular price£330.70

Customer Reviews

Based on 10 reviews
60%
(6)
10%
(1)
10%
(1)
20%
(2)
0%
(0)
A
Andrew Nixon
Toyota proace

fine to order and delivery very quick. Disappointed i need to return them. due to work that was needed to make them work. you need to cut at least 5 cm of plastic from the seat to make it swivel, you need to cut a holding pin in half to fit plus lower your hand brake. i was aware some alterations were needed but not to this level.

G
Garrie Vickers
Single Seat Swivel - Driver (Right Hand Drive) Toyota ProAce (2016+)

Delivered on time as promised. Haven’t installed it yet, but if as good as the passenger seat one I installed last year it’ll be great. Thanks.

K
Kit Fantastic
Citroën Spacetourer (Dispatch) - RIB Drivers swivel base

Only negative was that it arrived without instructions, but that just made it more of a challenge !! The only pieces I initially couldn’t figure out were the x4 cylindrical pieces of black pipe, but these fit between the van floor and the new base (the old base has similar pieces welded to it. Only other stumbling block was lowering the hand brake - the bracket included with the kit did the job, but I needed a visit to a friendly mechanic who literllay sprayed some lubricant (WD40) down the cable sheath which helped release it from the rubber holder below and it was easy to push the excess cable through the floor.
All in all, other than a little working out a great piece of kit !!!

G
Gonzalo
Drivers side for Peugeot Traveller

First of all the “instructions” provided are just mere drawing without any kind of guideline. Not good!!

As per the comment below, the installation of the plate requires to change the entire original base… which is not even showed in the photos of the item! The swivel plate comes with the seat base!

The base does not fit with the Peugeot traveller allire which brings an inverter under the driver seat!! Requires quite a few modifications!! Plastics will have to be trimmed to fit back….

Conclusion is that the videos in YouTube and the instruction provided a misleading…. It’s a day job and requires professional help!!

Thank you for your honest review Gonzalo. I am sorry to hear you encountered such difficulties. We must confess that the fitting of this swivel is a more complex undertaking than those for any of the models we sell for other vehicles. We have added a note to highlight the additional difficulties that some individuals may be less comfortable with handling. I hope that having overcome the issues you had in fitting the product, you are satisfied with the functionality it brings to your van.

S
Stephen Pilton
Drivers side swivel seat for Citroen Spacetourer

It's a very heavy, sturdy piece of kit but images here are misleading. This is not just a rotating base but the seat frame too. Instructions online aren't really clear about the work involved in removing the seat and frame base and lowering the handbrake. Lugs on the seat rails also need to be cut off to fit. This is a lot more work than most youtube tutorials for other vans.

Sorry to hear you had problems fitting it. Hope you managed to get a result you are happy with in the end. If not, please contact customer services help@kiravans.co.uk.

P
Philip Carlton
Toyota Swivel Seat

Good sturdy well manufactured product. Required a bit of sorting to refit casings but not to difficult

Description

Manufactured in France by Scopema, the RIB swivel plate for campervans gets lots of praise on the various forums. In our own experience, we have found these seat swivels to be very robust and rattle-free.

To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily. Once the seat is facing the rear re-engage handbrake. For seats fitted with up/down height adjustment, you will find that you probably need to pump up the seat height to allow the seat to rotate without the grey plastic trim around the base catching on anything.

Important note:

This Expert K0 swivel from RIB is a seat swivel plus the components for the seat base. As such, the installation process is considerably more complex than that for swivel products on other vehicles. The drivers seat swivel also requires that you lower the handbrake.

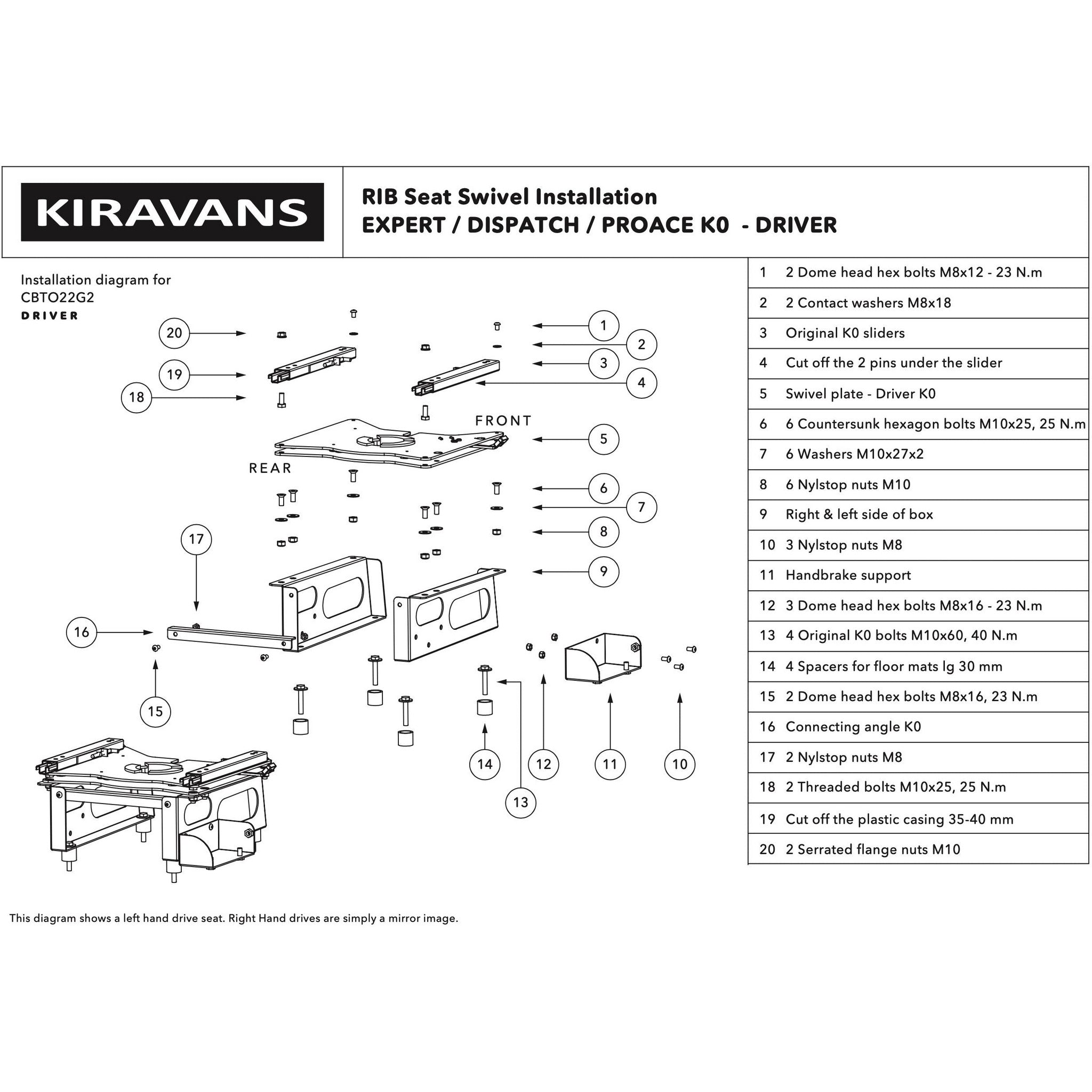

This vehicle chassis is provided for many different manufacturers (Peugeot / Citroën / Opel / Toyota) who each provide their own seats designs with different trims for different models. As a result, you may need to adjust the plastic trim on your specific seat to allow the it to turn freely. Please examine the available fitting diagram carefully before purchase.

Features

  • Swivel plate includes parts for replacing the seat base
  • Automatically locks in place facing forward for driving
  • Pivot point is centrally located in the base
  • European TUV safety approval

Compatibility

  • Compatible with Vauxhall Vivaro 2019+ (Mk3) | Citroen Dispatch/Jumpy 2016+ | Peugeot Expert 2016+ | Toyota ProAce 2016+ | Scudo 2022
  • Compatible with heated seats & airbags
  • Double passenger seats: If you have a double passenger seat in your van then the driver seat will not rotate unless you fit a swivel plate below the double passenger seat as well. For more detail please download our ‘Compatibility Information’ PDF below.

Product Specification

  • This swivel includes a replacement base frame (as the original one can’t be re-used)
  • Seat height increase: Approx 43mm
  • Safety: European TUV safety approval

Includes

  • Swivel plate
  • Bolts to fit standard seat boxes
