RIB Mercedes Sprinter 2019+ (3rd Gen M907) Single Seat Swivel - Offset Driver (Right Hand Drive)

Save 17%

Price:
Sale price£196.90 Regular price£236.20

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dene Luckraft

RIB Mercedes Vito/Viano W447 (2015+) / Mercedes Sprinter M907 (2019+) Single Seat Swivel - Offset Driver (Right Hand Drive)

T
Timothy Atkins
Drivers side swivel seat

Excellent product easy to fit and works well

p
paul
Mercedes V Class 220d AMG 2019 Driver Swivel

This unit fits the existing base on this model perfectly, no need to cut off pins as mentioned in the fitting instructions. The seat cables need to be routed over the seat cross bar or will snag upon rotation.
It has (for me) lifted the seat noticeably, I had already had the seat at its lowest position so this may take a bit of getting used to, but I am 6' 4" so it may not affect everyone.
To get the seat facing the rear, you will not be able to sit normally on the seat (unless you are a contortionist) and rotate it around as there is not enough room, you do have to have the seat almost fully forward so the back of the seat misses the rear door pillar, make sure that you do not have the seat too far forward as the seat rail will catch the bottom of the centre drinks/storage consul. I have put a white paint mark the rail to denote optimum position. As the seat rotates past the centre consul you will need to readjust the seat fully forward so the seat back doesn't catch on the steering wheel. When the seat is in the rear position you can the adjust the seat on the rails back towards the steering wheel.
If we want to sit in the rear seats (which are facing forward) and have maximum view out of the windscreen we position the seat back against the drivers door.
Purchasing from Kiravans is stress free and good communications throughout, just waiting for nearside to come into stock.
Regards Paul.

J
John Lamont
Osf seat swivel

Very easy to install job done in less than 30 min.
Just waiting on the ns one coming back into stock so I can fit that one too .

J
Jake Markham
Fantastic Quality Swivels

These swivels seem to be in very high demand - grabbed one when available and no regrets. Fitted in less than an hour (carefully) and so far very impressed with the quality of the unit. No real noticeable gain in height (with seat lowered :-) and the seat is very stable. All the fixings supplied are very good quality making the entire process very straightforward. Very sturdy construction. Totally changes the van and makes the overall layout way more sociable when parked up with the family. Recommended...

J
Jess Rushmer
Easy and perfect fit

Similar to the other reviewer, everything lined up great... and was a straight forward fit. We routed the seat belt wiring to another clip and used a little bit of 'polymorph' to create a guide for the seat belt wiring just in case it got caught.
Delivery was great and had regular updates as it progressed through tracking.

Description

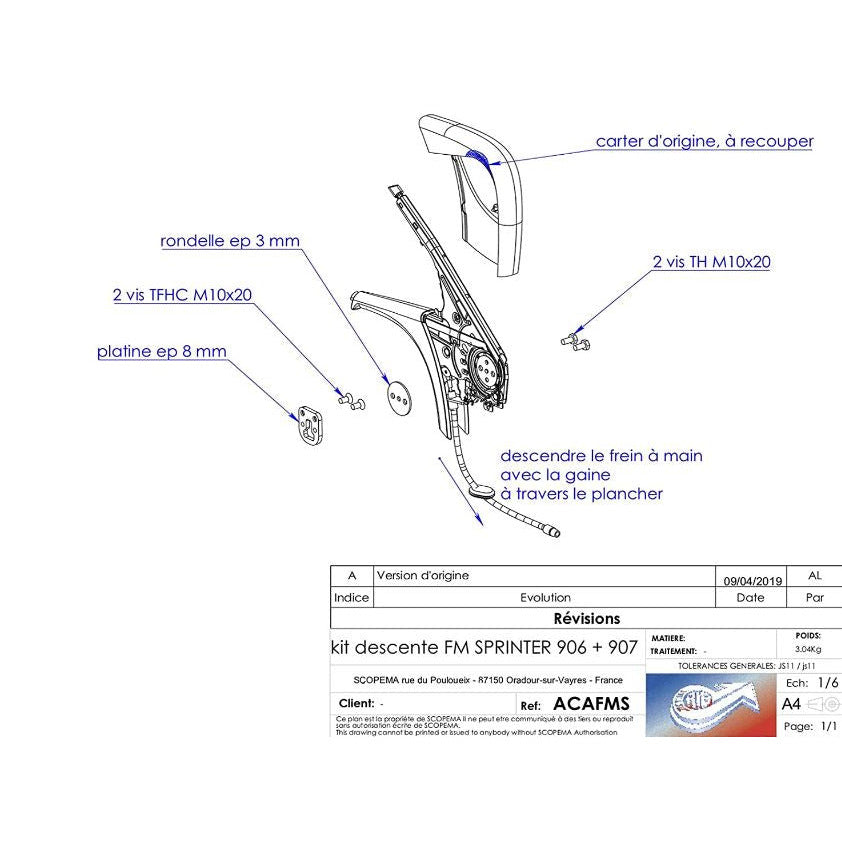

*Fitting to a Sprinter M907 (2019+)? .... Don't forget to add on a Sprinter M907 Handbrake Lowering Kit to your order. This will allow you to rotate your seat without it hitting the handbrake.

________________________________

Manufactured in France by Scopema, the RIB swivel plate for campervans gets lots of praise on the various forums. In our own experience, we have found these seat swivels to be very robust and rattle-free.

The offset feature of this particular swivel means that the pivot point is offset from the centre by a few centimetres towards the handbrake side of their seat. This means that the seat finishes up facing backwards a bit further from the door. The main advantage is that seats with armrests will spin around more easily. If you have a double seat swivel on the passenger side you should choose the non-offset version, otherwise, there won't be enough room for both seats to swivel backwards.

To rotate the seat, the engine must be turned off, vehicle put in gear and the handbrake released temporarily. Once the seat is facing the rear re-engage handbrake. For seats fitted with up/down height adjustment, you will find that you probably need to pump up the seat height to allow the seat to rotate without the grey plastic trim around the base catching on anything.

Features

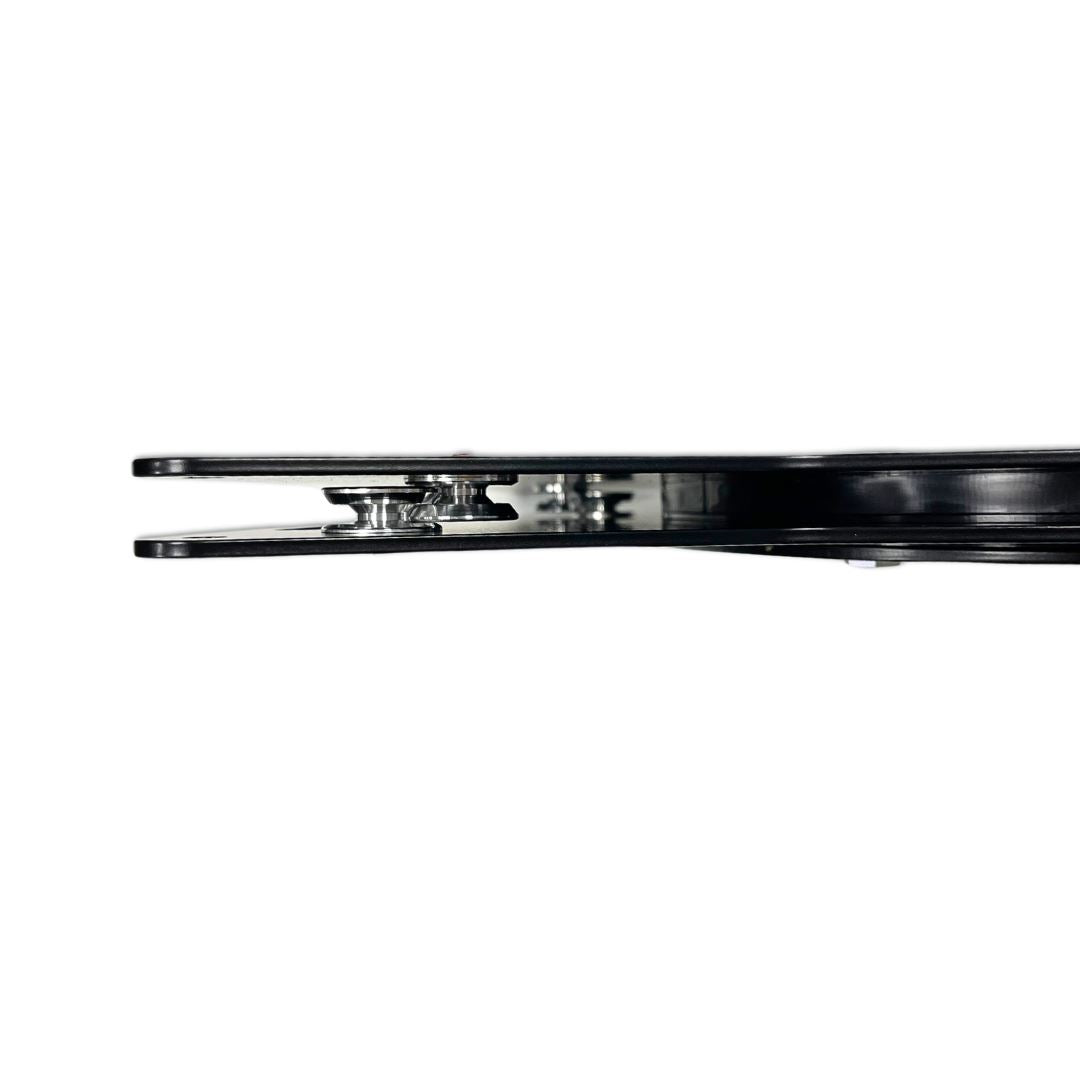

  • Swivel plate fits between the base and seat slider rails on normal seats
  • Automatically locks in place facing forward for driving
  • Pivot point is located offset from the centre so seats with armrests spin better.

Compatibility

  • Compatible with Mercedes Vito/Viano 2015+ (W447) / Mercedes Sprinter 2019+ (3rd Gen M907)
  • Compatible with heated seats and airbags (wires can pass through the centre)
  • Not compatible with the Dualiner model

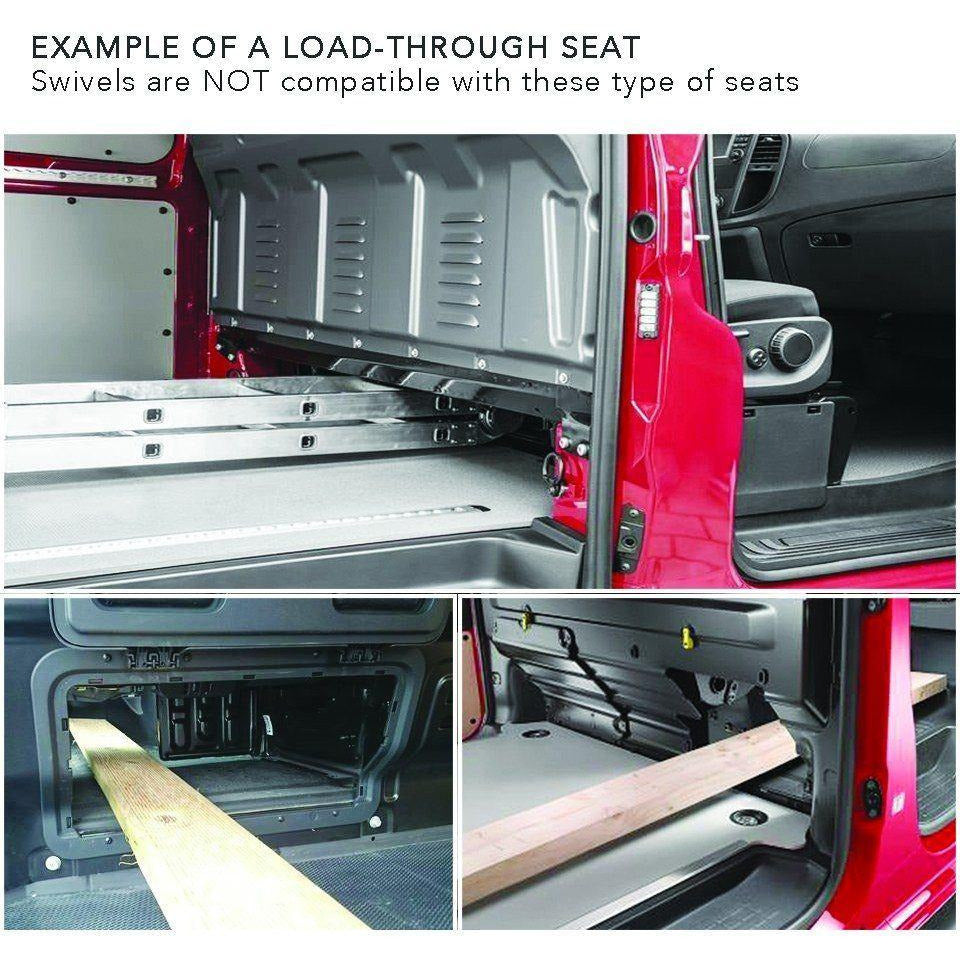

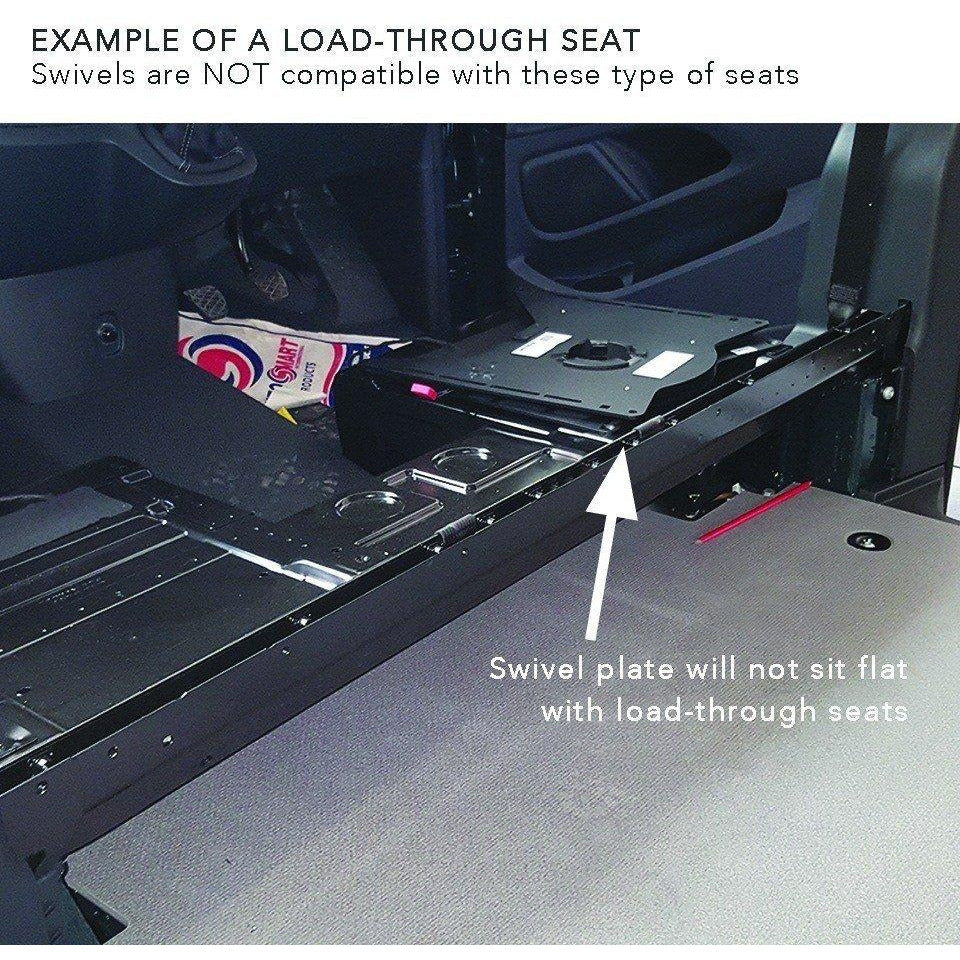

  • Not compatible with through-loading seats as they don't allow the swivel to sit flat.
  • Not compatible with double swivels

Product Specification

  • Seat height increase: Approx 43mm
  • Safety: TUV approved

Includes

  • Swivel plate
  • Bolts to fit standard seat boxes
