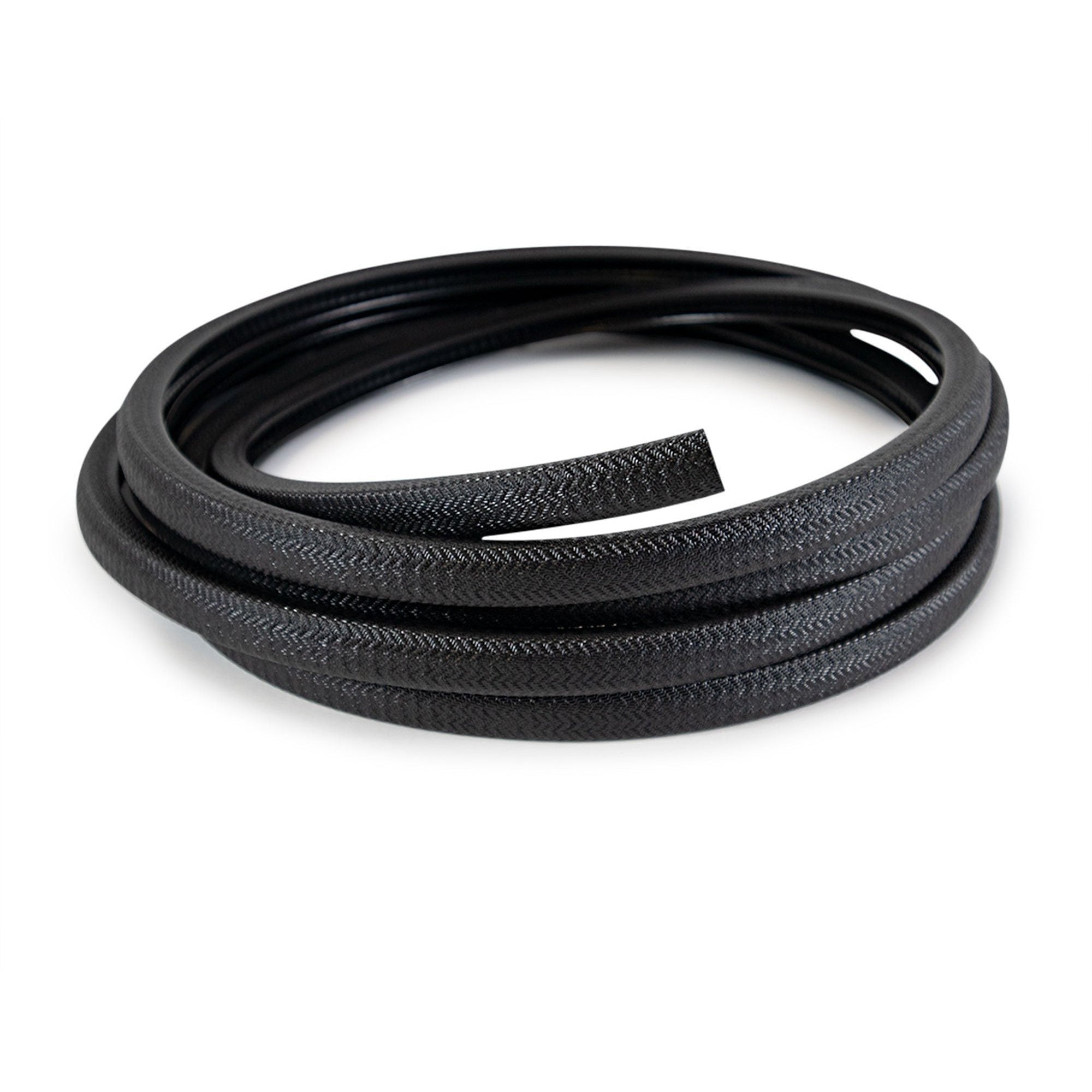

U-Profile Window Edge trim - Black

Sale price£24.00

Customer Reviews

Based on 21 reviews
Barry Trevitt
Edge trim

I ordered the 2-5mm edge trim for my conversion. Somehow the larger type was delivered. A short phone call and the lady at Kiravans apologised, arranged a replacement and told me to keep the larger trim just in case I could use it. This was 9 metres !! As they say in their advertising, if you have a problem, Kiravans will make sure they sort it out. Great customer care and a great company.

Matthew Hughes
Window seal and adhesive

The Kiravans help videos are very professional and very Informative. After watching the video on fitting a sealed side window and understanding a wider seal can be found I went ahead and ordered one from these guys. Both the seal and adhesive are great quality and arrived very quickly, great service both products and videos!


Spot on item will use kiravans again vg service thanks

Paul mason
Outstanding service

This was my fourth transaction with Kiravans and top quality items and service each time highly recomended


Great service, recommended

John Crawford
Fantastic Service

As mentioned above. I've had 2 separate orders, each delivered within 2 days of ordering.


This is produced specifically for finishing off the cut metal inside your van window. It is best to apply this before sticking your window on, but it can also be done afterwards - it's just a bit more tricky!

We stock 2 types of U-profile trim. As a rule, we recommend using the wider edge trim as it's easier to fit. The wider edge trim will easily go over both metal skins on a T5, so it avoids the need to remove pinch weld. However, if you have the time and muscle power to cut out these metal skins, then the standard 8.5mm trim narrow will give you a slightly neater finish!

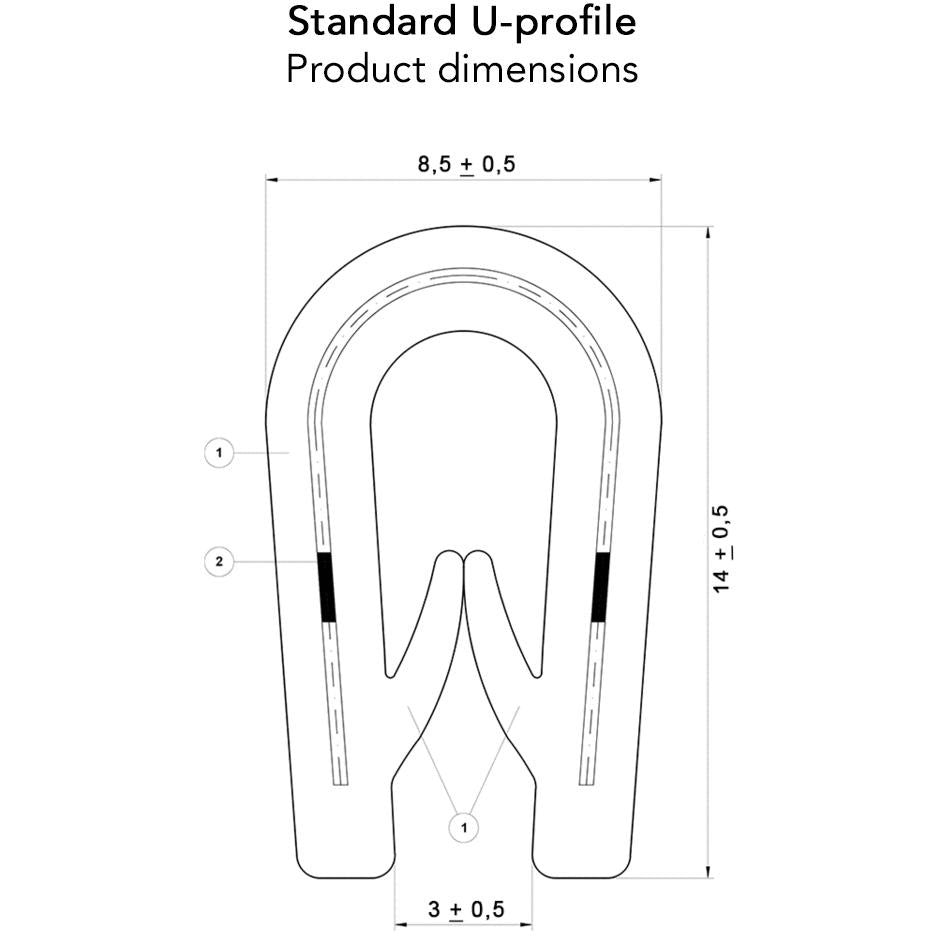

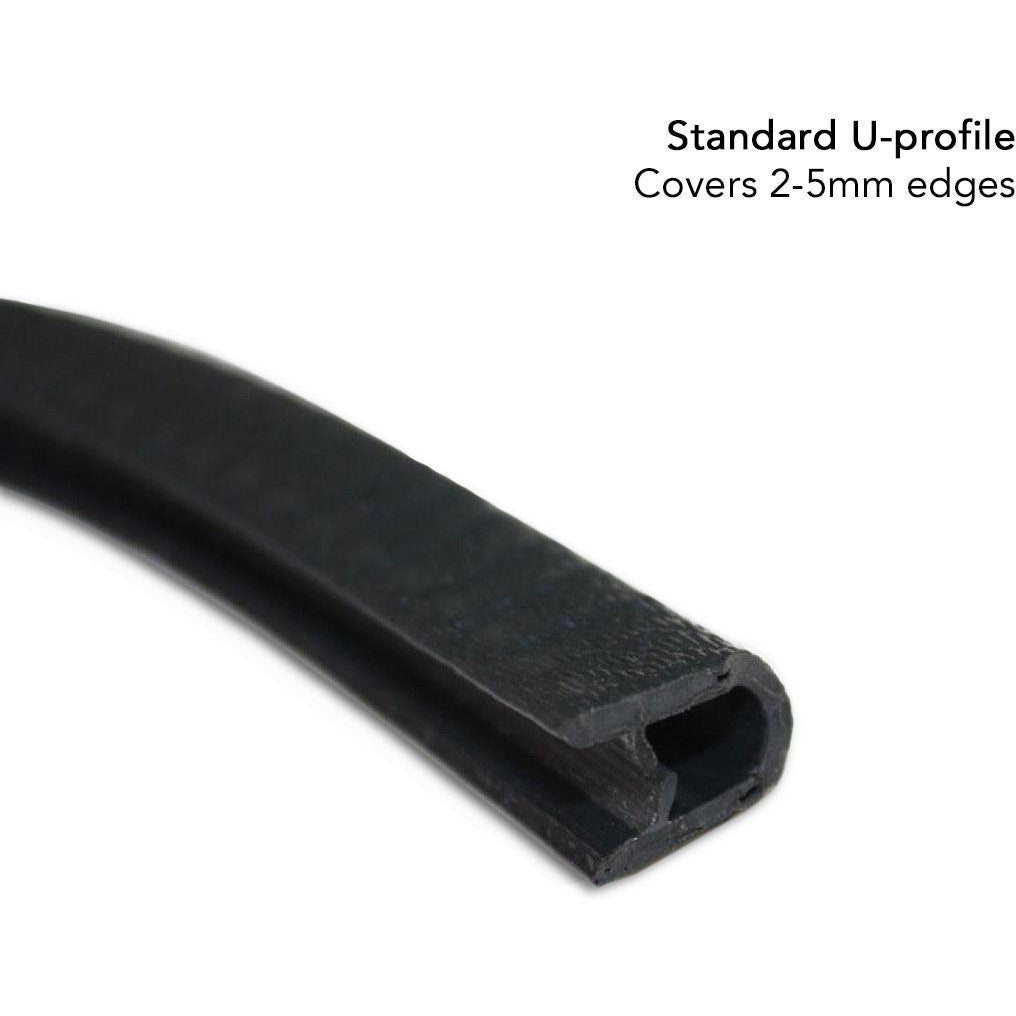

8.5mm Standard U-profile edge trim - Black (per metre)

This edge trim is designed to cover edges from 2mm-5mm across but it will open up more than this. We recommend cutting out the VW bonding between the two metal skins and rebonding them together so that the edge trim goes over both skins of metal. This results in a much neater finish to your van.

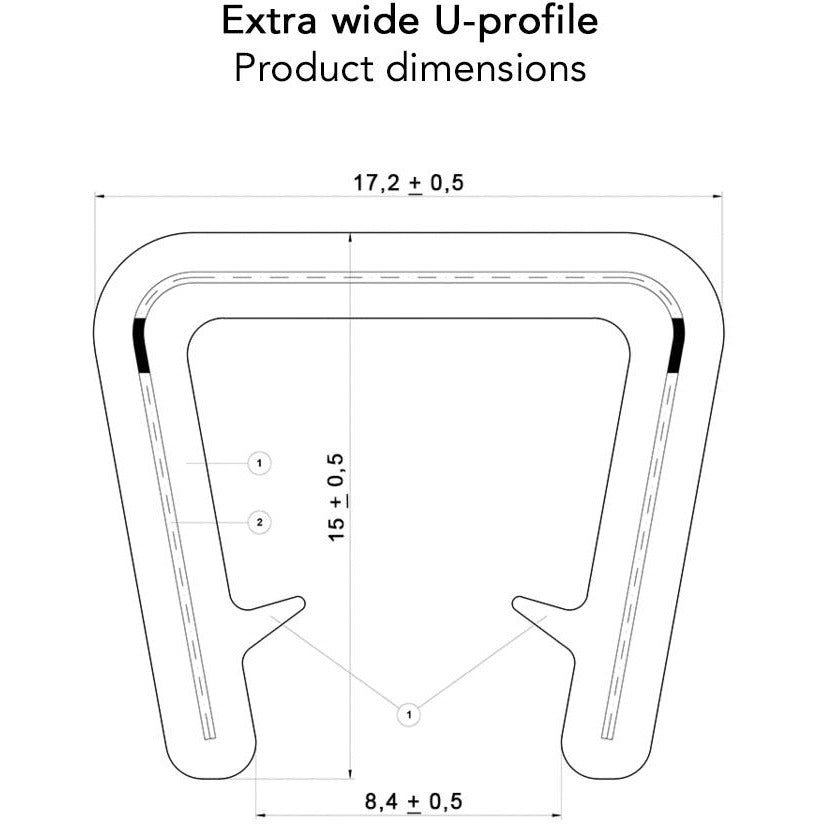

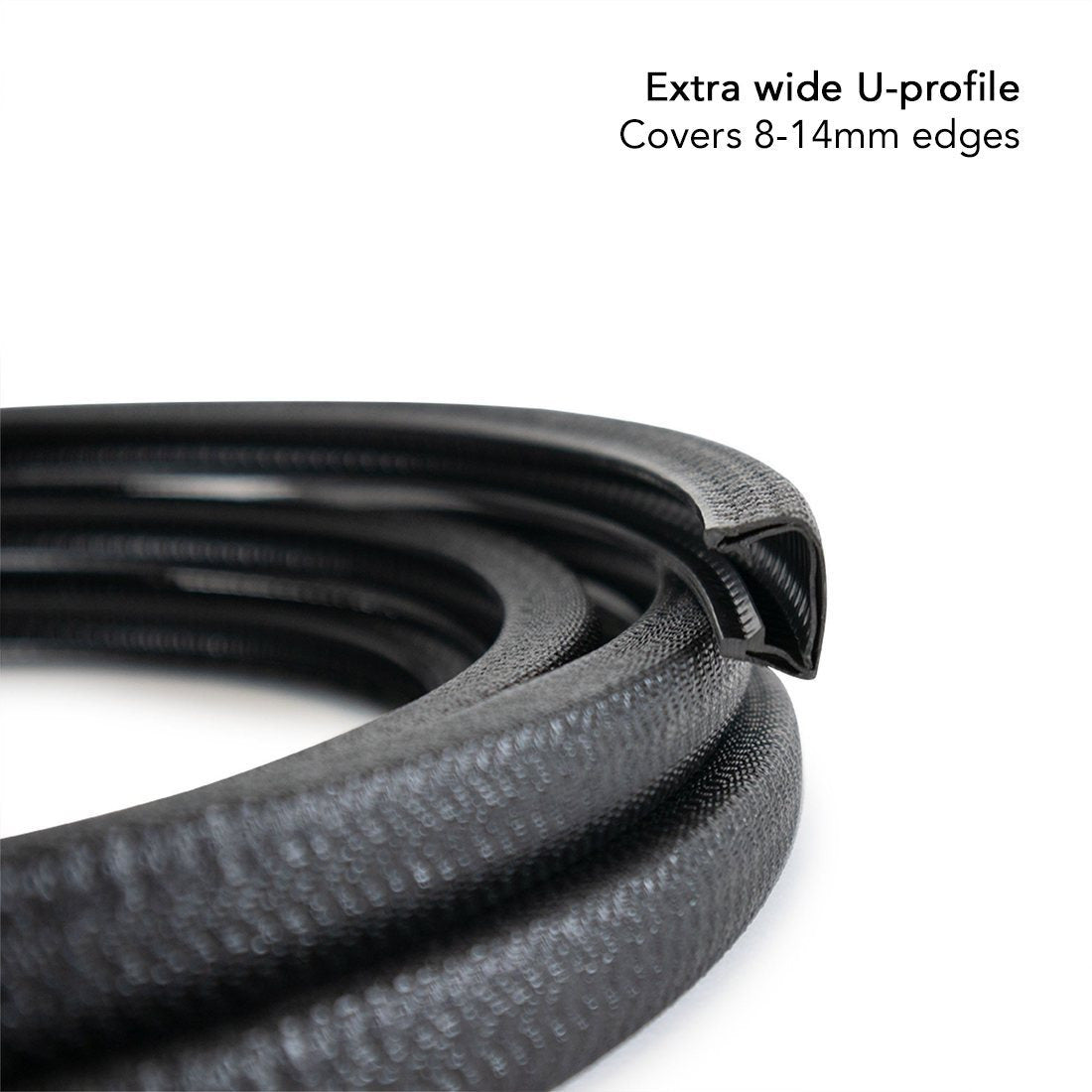

Extra wide U-profile edge trim - Black (per metre)

This edge trim is designed to cover edges from 8-14 mm across. With this profile, you do not need to cut our the adhesive bond between the two metal skins in your van.

Here's a handy guide to be sure you order enough:

WINDOW METRES (Per-window)
Side window 3m
Rear 3/4 window SWB 2.6m
Rear 3/4 window LWB 3.3m
Barn doors 4.5m
Tailgate 3.6m

Window Resources

Installation documentation, videos & FAQ's:

Kiravans Campervan Windows
